빠르고 정확한 AAV 역가측정 (qPCR)

AAVpro® Titration Kit (for Real Time PCR)

제조사	제품코드	제품명	용량	가격 (부가세별도)	비고	사용자매뉴얼
Takara	6233	AAVpro® Titration Kit (for Real Time PCR)	100 회	709,000원

Product index

다양한 serotype의 AAV를 정량
빠르고 간편하게 약5시간만에 AAV 정량
일반적인 DNA blot 또는 ELISA 방법 대비 정확한 titration 측정
Packaging cell line에서 AAV 추출, Real Time PCR까지 필요한 모든 구성품 포함

제품 설명

Adeno-Associated Virus (AAV)는 분열 및 비분열 세포에 모두 적용이 가능하며, 특히 비분열 세포에서 장기간 유전자 발현이 가능하다. 또한 면역원성 (immune response)이 낮아 in-vivo 실험에 최적화된 바이러스이다.
AAV의 역가측정은 감염 조직 및 감염 방법에 최적인 AAV의 양을 결정하고 일관된 실험 결과를 도출하기 위해 매우 중요하다. AAVpro^® Titration Kit (for Real Time PCR)은 다카라가 독자적으로 개발한 Real Time PCR방식의 titration Kit로 빠르고 효율적으로 AAV의 역가를 측정할 수 있다.

이 제품에는 AAV packaging cell line에서 AAV를 추출하는 과정부터 Real Time PCR 정량을 위한 시약이 모두 포함되어 있다. AAV vector 양 말단에 존재하는 ITR (Inverted Terminal Repeat)을 target으로 AAV genome을 검출하기 때문에, 기존의 DNA blot 또는 ELISA 법에 비해 빠르고 정확한 결과를 얻을 수 있으며, 다양한 AAV serotype^*1에 적용할 수 있다.
^*1 AAV에서 일반적으로 사용하는 AAV2유래의 ITR 서열을 검출하므로, ITR영역이 AAV2로부터 유래한 서열이면 serotype에 관계없이 정량 가능하다.

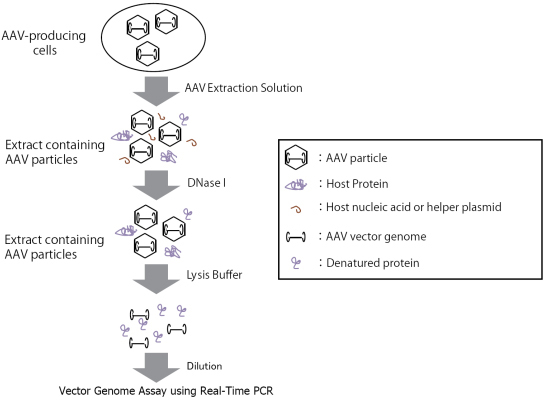

그림 1. AAVpro^® Titration Kit (for Real Time PCR) workflow

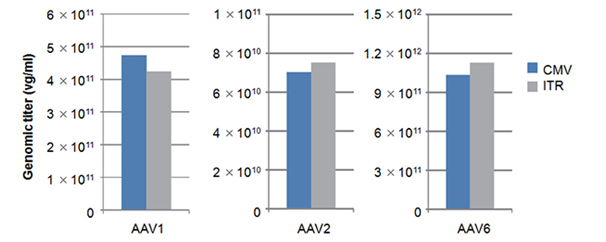

그림 2. 다양한 serotype에서 AAVpro^® Titration Kit (for Real Time PCR) 적용성 확인
ITR 서열 (AAVpro^® Titration Kit (for Real Time PCR)에서 사용)과, CMV의 서열을 타겟하는 각각의 primer set을 사용해 AAV1, 2, 6의 세 종류의 바이러스에 역가를 측정하였다. 그 결과 세 종류의 serotype 모두 CMV를 타겟한 결과와 유사한 경향을 보여 AAVpro^® Titration Kit가 AAV2유래의 ITR 서열을 가진 다양한 serotype의 AAV 정량에 이용 가능하다는 것을 확인했다.

내용

AAVpro^® Titration Kit (for Real Time PCR) (Code 6233, 100 회)

1.	AAV 추출 시약
	AAV Extraction Solution A	2 x 1.5 ㎖
	AAV Extraction Solution B	300 ㎕
2.	AAV genome 간이 추출 (100 회)
	DNase I	100 ㎕
	10×DNase I Buffer	200 ㎕
	Lysis Buffer	2 x 1 ㎖
3.	Real Time PCR (25 ㎕ 반응 시, 100회)
	TB Green™ Premix Ex Taq II (Tli RNaseH Plus)	2 x 625 ㎕
	AAV Forward Titer Primer	20 ㎕
	AAV Reverse Titer Primer	20 ㎕
	dH₂O	3 x 1 ㎖
	ROX Reference Dye	50 ㎕
	ROX Reference Dye II	50 ㎕
	Positive Control	50 ㎕
	EASY Dilution (for Real Time PCR)	5 x 1 ㎖

보존

TB Green^® Premix Ex Taq II (Tli RNaseH Plus): 4℃, 차광 (장기 보존시 -20℃, 융해 후에는 4℃ 보존)
그 외: -20 ℃ (AAV Extraction Solution A, B, Lysis Buffer는 융해 후는 실온 보존)

Citation

A reversible RNA on-switch that controls gene expression of AAV-delivered therapeutics in vivo
Nature Biotechnology | 2019 Nov 12 | PubMed ID: 31873216 | Read Article

Deschloroclozapine, a potent and selective chemogenetic actuator enables rapid neuronal and behavioral modulations in mice and monkeys
Nature neuroscience | 2020 Nov 30 | PubMed ID: 32632286 | Read Article

A Genetically-Defined Circuit for Arousal from Sleep during Hypercapnia
Neuron | 2018 Dec 06 | PubMed ID: 29103805 | Read Article

Endocytosis following dopamine D2 receptor activation is critical for neuronal activity and dendritic spine formation via Rabex-5/PDGFRβ signaling in striatopallidal medium spiny neurons
Molecular psychiatry | 2017 Nov 13 | PubMed ID: 27922607 | Read Article

TLR3 Mediates Repair and Regeneration of Damaged Neonatal Heart through Glycolysis Dependent YAP1 Regulated miR-152 Expression
Cell Death and Differentiation | 2018 Jan 22 | PubMed ID: 29358670 | Read Article

Low-dose AAV-CRISPR-mediated liver-specific knock-in restored hemostasis in neonatal hemophilia B mice with subtle antibody response
Nature Communications | 2022 Nov 25 | Read Article

Scn1a gene reactivation after symptom onset rescues pathological phenotypes in a mouse model of Dravet syndrome
Nature Communications | 2022 Jan 10 | PubMed ID: 35013317 | Read Article

A genetically encoded fluorescent biosensor for detecting itaconate with subcellular resolution in living macrophages
Nature Communications | 2022 Nov 04 | Read Article

Slow-wave sleep is controlled by a subset of nucleus accumbens core neurons in mice
Nature Communications | 2017 Sep 29 | PubMed ID: 28963505 | Read Article

In vivo base editing rescues cone photoreceptors in a mouse model of early-onset inherited retinal degeneration
Nature Communications | 2022 Apr 05 | PubMed ID: 35383196 | Read Article

Noninvasive optical activation of Flp recombinase for genetic manipulation in deep mouse brain regions
Nature Communications | 2019 Jan 18 | PubMed ID: 30659191 | Read Article

Nucleus accumbens controls wakefulness by a subpopulation of neurons expressing dopamine D 1 receptors
Nature Communications | 2018 Apr 20 | PubMed ID: 29679009 | Read Article

TAZ links exercise to mitochondrial biogenesis via mitochondrial transcription factor A
Nature Communications | 2022 Feb 03 | PubMed ID: 35115527 | Read Article

CRISPR-Cas9-mediated therapeutic editing of Rpe65 ameliorates the disease phenotypes in a mouse model of Leber congenital amaurosis
Science Advances | 2019 Oct 01 | PubMed ID: 31692906 | Read Article

DOK 7 gene therapy enhances motor activity and life span in ALS model mice
EMBO Molecular Medicine | 2017 May 10 | PubMed ID: 28490573 | Read Article

2020 ASGCT Annual Meeting Abstracts
Molecular Therapy | 2020 Apr 01 | Read Article

Inhibition of repulsive guidance molecule-a protects dopaminergic neurons in a mouse model of Parkinson’s disease
Cell Death & Disease | 2021 Feb 15 | PubMed ID: 33589594 | Read Article

Actin-related protein 5 functions as a novel modulator of MyoD and MyoG in skeletal muscle and in rhabdomyosarcoma
eLife | 2022 Mar 29 | PubMed ID: 35348112 | Read Article

Whole brain delivery of an instability-prone Mecp2 transgene improves behavioral and molecular pathological defects in mouse models of Rett syndrome
eLife | 2020 Mar 24 | PubMed ID: 32207685 | Read Article

Chemogenetic inhibition of the medial prefrontal cortex reverses the effects of REM sleep loss on sucrose consumption
eLife | 2016 Dec 06 | PubMed ID: 27919319 | Read Article

Bright multicolor labeling of neuronal circuits with fluorescent proteins and chemical tags
eLife | 2018 Nov 20 | Read Article

Machine learning sequence prioritization for cell type-specific enhancer design
eLife | 2022 May 16 | PubMed ID: 35576146 | Read Article

The rostromedial tegmental nucleus is essential for non-rapid eye movement sleep
PLoS Biology | 2018 Apr 13 | PubMed ID: 29652889 | Read Article

Repulsive Guidance Molecule A Suppresses Adult Neurogenesis
Stem Cell Reports | 2020 Apr 02 | PubMed ID: 32243839 | Read Article

Hepatitis-D Virus Infection Is Not Impaired by Innate Immunity but Increases Cytotoxic T-Cell Activity
Cells | 2021 Nov 20 | PubMed ID: 34831475 | Read Article

Two distinct Notch signals, Delta-like 4/Notch1 and Jagged-1/Notch2, antagonistically regulate chemical hepatocarcinogenesis in mice
Communications Biology | 2022 Jan 21 | PubMed ID: 35064244 | Read Article

Impact of Medium-Sized Extracellular Vesicles on the Transduction Efficiency of Adeno-Associated Viruses in Neuronal and Primary Astrocyte Cell Cultures
International Journal of Molecular Scienc… | 2021 Apr 19 | PubMed ID: 33921740 | Read Article

Fatty Acid Binding Protein 3 Enhances the Spreading and Toxicity of α-Synuclein in Mouse Brain
International Journal of Molecular Scienc… | 2020 Mar 23 | PubMed ID: 32210174 | Read Article

Development of an Adeno-Associated Virus-Vectored SARS-CoV-2 Vaccine and Its Immunogenicity in Mice
Frontiers in Cellular and Infection Micro… | 2022 Mar 03 | PubMed ID: 35310850 | Read Article

Single-Dose Vaccination with a Hepatotropic Adeno-associated Virus Efficiently Localizes T Cell Immunity in the Liver with the Potential To Confer Rapid Protection against Hepatitis C Virus
Journal of Virology | 2019 Oct 01 | Read Article
